512/600-MP FAG ball bearings

512/600-MP FAG ball bearings

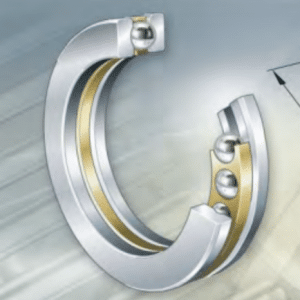

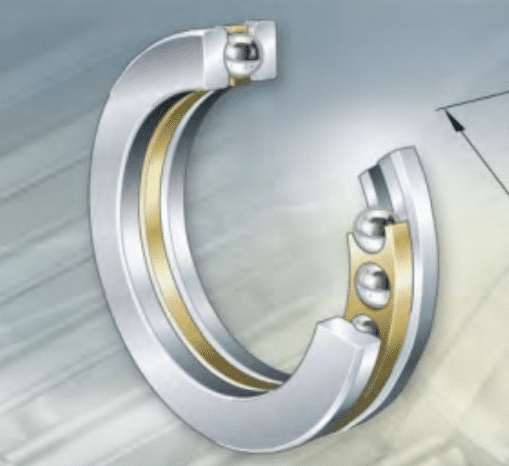

Axial deep groove ball bearings

 FAG Axial deep groove ball bearings



Designation Mass

m

kg

Dimensions
    d                   D                   T                   D1                      d1 r

min.

51180-MP 23,5 400 480 65 404 476 2
51280-MP 78,5 400 540 112 405 535 4
51480-M 454 400 710 243 405 705 7,5
51184-MP 24,4 420 500 65 424 495 2
51284-MP 108 420 580 130 425 575 5
51384-MP 220 420 650 180 425 645 6
51484-M 468 420 730 243 425 725 7,5
51288-MP 99,3 440 600 130 445 595 5
51388-M 276 440 680 190 445 675 6
51192-MP 37,2 460 560 80 464 555 2,1
51292-MP 103 460 620 130 465 615 5
51196-MP 38,7 480 580 80 484 575 2,1
51296-MP 130 480 650 135 485 645 5
511/500-MP 44,9 500 600 80 505 595 2,1
512/500-MP 144 500 670 135 505 665 5
511/530-MP 55,9 530 640 85 535 635 3
512/530-MP 158 530 710 140 535 705 5
511/560-MP 58,8 560 670 85 565 665 3
512/560-MP 204 560 750 150 565 745 5
511/600-MP 62,7 600 710 85 605 705 2
512/600-MP 240 600 800 160 605 795 5
513/600-M 572 600 900 236 605 895 7,5
511/630-FP 81,5 630 750 95 635 745 3
511/630-MP 82,1 630 750 95 635 745 3
512/630-M 287 630 850 175 635 845 6
512/630-MP 287 630 850 175 635 845 6
513/630-M 678 630 950 250 635 945 9,5
511/670-MP 105 670 800 105 675 795 4
512/670-MP 349 670 900 180 675 895 6
511/710-MP 113 710 850 112 715 845 4
512/710-MP 376 710 950 190 715 945 6
511/750-MP 147 750 900 120 755 895 4
512/750-MP 458 750 1000 195 755 995 6

You can get competitive price of NTN bearing from our company. More information, please contact us  E-mail:sale@adyrbearing.com

ADYR Bearing Co.,Limited. has been engaged in bearing industry for many years, we provide a wide selections of brands including Timken bearing, INA bearing, FAG bearing, NTN bearings, SKF bearings, deep groove ball bearings, cylindrical roller bearings, tapered roller bearings, self-aligning ball bearings,thrust ball bearings, rolling mill bearings, spherical roller thrust bearings, spherical bearings, adapter sleeves, withdrawal sleeves, lock nut, lock washer,locking device, etc.



We can provide bearing and non-standard bearings, linear bearings, automotive bearings, large bearings, railway bearings, spherical plain bearings, high temperature, super-precision bearings, as well as some rare types customized to your need.

Our bearings are exported to countries and regions in Europe (the UK, France, Italy, Germany), North America (USA, Canda),

Middle East and Southeast Asia.Our goal is to exceed our customers’ expectation in providing quality products and continue to improve the services we
provide on a timely manner.Please view the products at our website that we can supply. You can also contact our sales representative to request a
price quotation on the products that you are looking for that may not been shown on our website.

Packaging & Shipping
1.industrial packing+industrial cartons+pallets
2.single brand box+brand cartons+pallets
3.follow customer’s requests
A.Plastic Tubes or Single Boxes ( Usually 10pcs in one plastic tube for steel bearings);
B.Cartons ( No more than 30kg for one carton );
C. Pallet ( Usually more than 400kg totally will use pallet )
D. Delivery time :7-35 days ( by sea or by air )
Generally,We will choose the most suitable packing method for products. If you have any special requirements for packing, pleasecontact us in advance.
 After Sales Service
In order to meet the increasing market demand, and better serve the customers, we has built a professional team composed of sales engineers to provide perfect pre-sales and after-sales services.We provide consulting services for maintenance, procurement and design staff concerning the basic knowledge, selection, installation and removal, lubrication, maintenance and equipment management of imported bearings.All these services are mean to reduce the installation errors, form good work and safety habits and improve the efficiency of maintenance personnel, thus achieving the best use effect and the maximum bearing life.We also help users analyze the failure of the bearing, confirm the causes, provide solutions for this issue and give suggestions on precautionary measures.
FAQ
Q:What’s your after-sales service and warranty?
A: We promise to bear the following responsibilities when defective products were found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.
Q:Do you accept ODM&OEM orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we also customize OEM box and packing as your requirements.
Q:What’s the MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
Q:How long is the lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.
Q:Do you offer free samples?
A: Yes we offer free samples to distributors and wholesalers, however customers should bear freight. We DO NOT offer free samples to end users.
Q:How to place order?
A: 1. Email us the model, brand and quantity,shipping way of bearings and we will quote our best price for you;
2. Proforma Invoice made and sent to you as the price agreed by both parts;
3. Deposit Payment after confirming the PI and we arrange production;
4. Balance paid before shipment or after copy of Bill of Loading.
Contact with us now!
